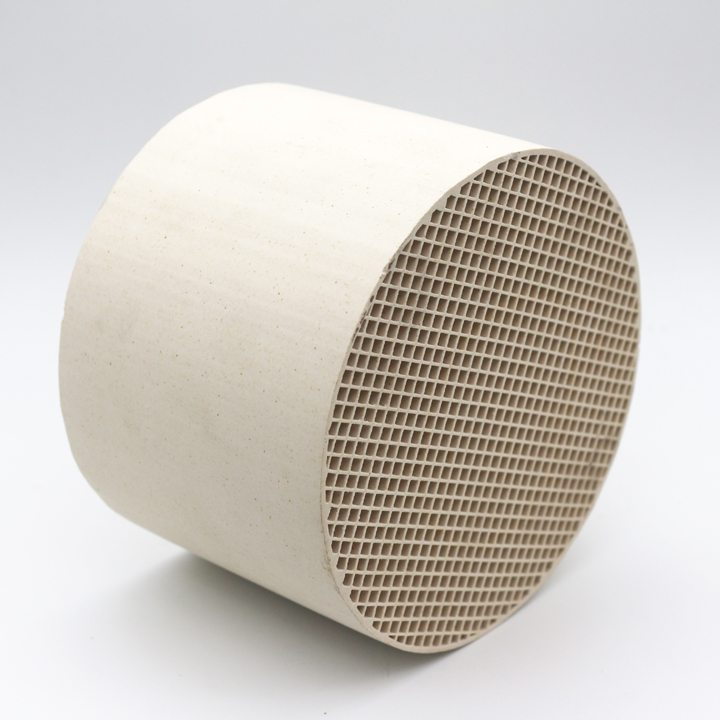

Diesel Particulate Filters For Exhaust System Diesel Particulate Filters

Name: Diesel Particulate Filters For Exhaust System Diesel Particulate Filters
Brand: NKCHEM
Price: 1 USD

China Diesel Particulate Filters For Exhaust System Diesel Particulate Filters wholesale

Brand Name : NKCHEM

Model Number : NK-DPF

Certification : SGS

Place of Origin : Jiangxi, China

MOQ : Diesel Particulate Filters for Exhaust System

Price : CN¥1,820.99 - CN¥2,451.33

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 500 Metric Ton/Metric Tons per Month

Delivery Time : 5-8 work day

Packaging Details : carton with pallet or carton with wooden case

Material : cordierite , silicon carbide

Type : Catalytic Converter

Shape : Round, oval, racetrack or abnormity

Contact Now

Diesel Particulate Filters For Exhaust System Diesel Particulate Filters - Range Of Direct Fit Dpf/Fap Available

Diesel Particulate Filters Introduction:

Diesel particulate filter is used to remove black smoke (PM e.g.: Hydrocarbons, soot) from diesel engine exhaust, being a great contribution to the environment because of dealing with the exhaust from diesel engines. The diesel particulate filter can be used in different industrial fields such as environment protection, petrol-chemistry, medicine manufacture, and metallurgy etc. It has good investment return and broad prospect. The system installed DPF (Diesel Particulate Filter) been examined for urban bus, forklift, truck & mining constructing equipment. Diesel Particulate Filters For Exhaust System Diesel Particulate Filters

Material Attributes:

Property (uncatalyzed)		100/17	200/12
Cell density	cpsi	100	200
Cell density	cpscm	15.5	31.0
Wall thickness	inch	0.017	0.012
Wall thickness	mm	0.432	0.305
Open frontal area (OFA), %		34.5	34.5
Geometric surface area (GSA)	Inch2	33.3	47.0
Geometric surface area (GSA)	m2/l	1.31	1.85
Hydraulic diameter	Inch	0.083	0.059
Hydraulic diameter	mm	2.11	1.49
Modulus of rupture (psi/cpscm)		350	300
Porosity (%)		48	48
Coefficient of thermal expansion 102 cm/cm/ (20-800) --maximum average		5	5
Mean pore size (micron)		13	13
Melting temperature ()		1460	1460

Physical components

Component	Unit	Data	Component	Unit	Data
SiO2	wt%	48-51	Fe2O3	wt%	<0.5
Al2O3	wt%	31-34	Na2O	wt%	<0.5
MgO	wt%	14-16	K2O	wt%	<0.5

Specifications:

100cpsi

NO.	Item		Our products
1	Filter material		Cordierite and Silicon carbide
2	Operating temperature limit (0C)		1000
3	Dimension (mm)		Ø144x150,Ø144x152.4,Ø150x150,Ø190x200,Ø190x203, Ø240x240,Ø240x305 Ø260x305, Ø267x305, Ø286x305, Ø286x355,Ø374x270x317
4	Cell pitch (mm)		100 cpsi
5	Cell wall thickness (mm)		0.45-0.52
6	Cell size (mm)		2.02-2.09
7	Mean pore size (um)		8-13
8	Porosity (gas pocket rate) %		50-55
9	Coefficient of thermal expansion		1.6x10-6
10	Softening temperature (0C)		1360
11	Compressive Strength (Mpa)	Lengthwise direction	10
		Lateral direction	2
12	Water absorption rate:		35%
