Column Packing Metal Pall Packing Ring 38mm For Distillation

Model Number : NK-MPR

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic metre

Price : depends on quantity

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 15 days for one 20GP container

Packaging Details : jumbo bag and pallet, one 20ft can load 20m3

Product name : Metal pall ring

Material : stainless steel, SS316, 304, 304L, 316L

Diameter : 38mm

Application : distillation column

Classfication : Tower packing, random packing, column packing

Contact Now

Stainless Steel SS316 Metal Pall Ring 50mm For Distillation Column

Product description

Metal Pall Ring Packing is well known packing after rasing ring,an industry standard design media which used in many applications,widely used in all kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarbonization , desulfuration ,separation of ethylbenzene, separation of isooctane/ methylbenzene,

Application:

Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2

Naike Metal Pall Ring is an industry standard design media deveoped from Metal Pall Ring and is used widely in varieties of applications.

Material: Metal Pall Rings are available in a wide range of materials such as stainless steel ,carbon steel ,aluminum, bronze,304L,316L,and other alloy etc.

Advantage:

Lower pressure drop

Good liquid/gas distribution and higher mass transfer efficiency versatility,easily wettable, high resistance to fouling ,high temperature.

High Mechanical strength ,suitble for depper beds

Good liquid/gas distribution and higher mass transfer efficiency versatility

Technical data

Name	Size	Diameter x Heightx Thickness mm	Surface area m²/ m³	Void space %	Bulk density kg/ m³	No,per m³	Packing factor m-1
Pall ring	Φ16	16x16x0.4	239	92.8	365	205000	299
	Φ25	25x25x0.6	219	93.4	427	55900	269
	Φ38	38x38x0.8	129	94.5	365	13000	153
	Φ50	50x50x1.0	112.3	94.9	395	6500	131

Note: The above data are reference to material SS304.

Package info

	package	bags	loaded volumn
20GP container	jumbo bag	20	20m3
40GP container	jumbo bag	44	44m3
40HQ container	jumbo bag	44	50m3

One jumbo bag can load 1-1.5m3 metal pall ring.

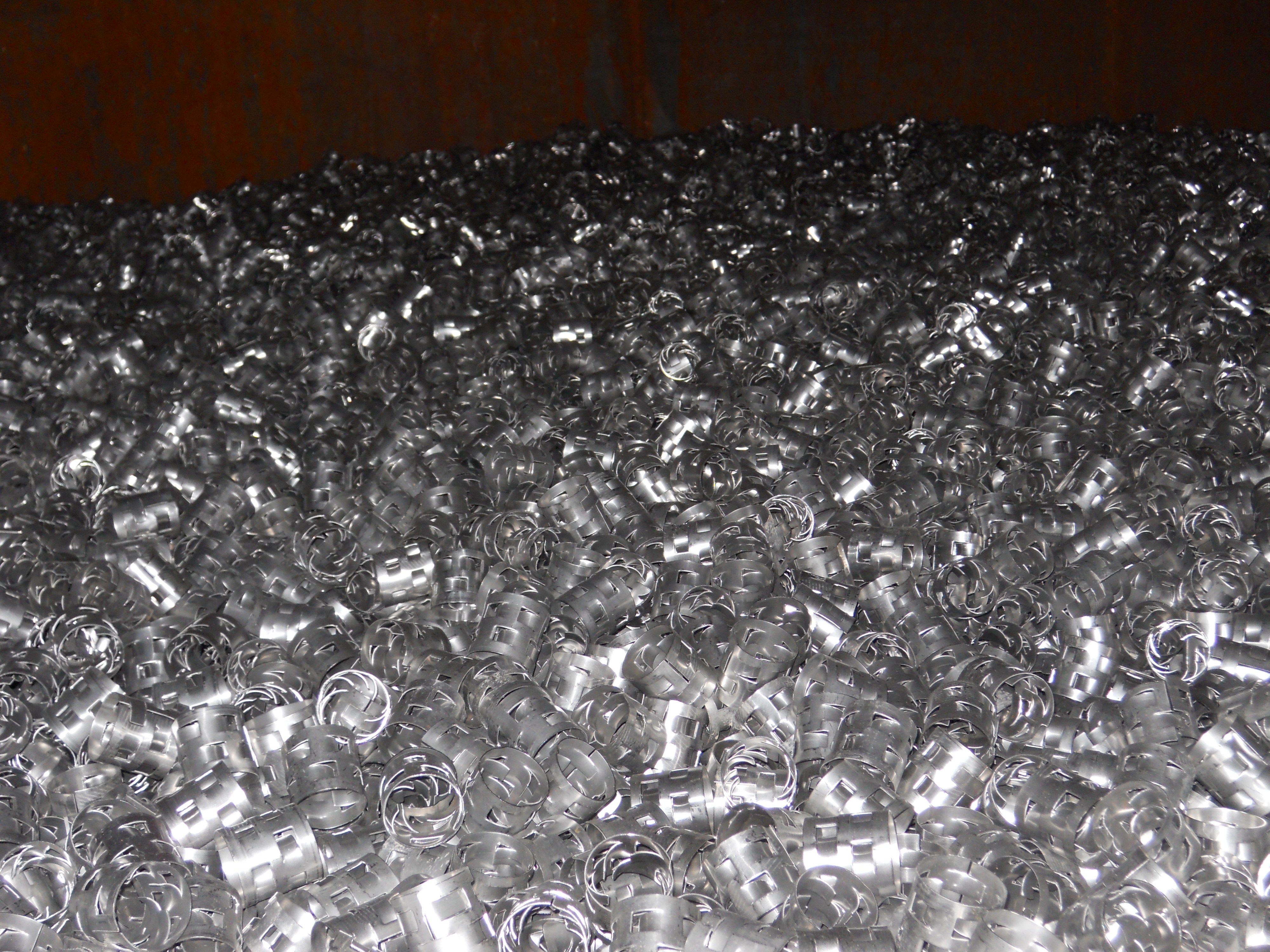

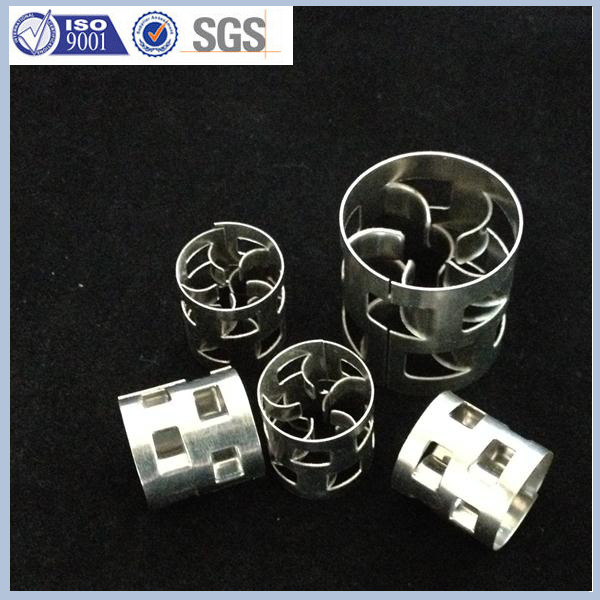

Product photo

Column Packing Metal Pall Packing Ring 38mm For Distillation

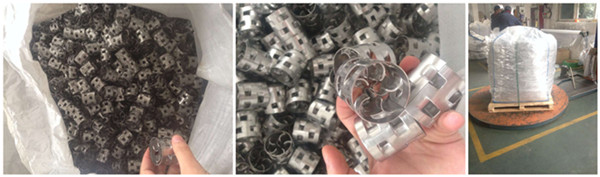

Production and shipment

Column Packing Metal Pall Packing Ring 38mm For Distillation

Other metal random packing products

Pall ring, Raschig ring, Super raschig ring, Cascade ring, Intalox saddle ring, IMTP packing, Conjugate ring, VSP ring, metal improved inner arc ring

Column Packing Metal Pall Packing Ring 38mm For Distillation
