Metal IMTP Tower Packing 25mm, 38mm, 50mm, 76mm

Model Number : NK-MSR

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic metre

Price : depends on quantity

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 15 days for one 20GP container

Packaging Details : jumbo bag and pallet, one 20ft can load 20m3

Product name : Metal IMTP Tower Packing

Material : stainless steel, 304, 304L, 316, 316L

Diameter : 25mm, 38mm, 50mm, 76mm

Application : distillation column

Classfication : Tower packing, random packing, column packing

Contact Now

Metal IMTP Tower Packing 25mm, 38mm, 50mm, 76mm

Product description

Metal Intalox Saddle Ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays. Metal Intalox Saddle Ring or metal saddle is available in various sizes, which give different combinations of efficiency and pressure drop.

Advantages:
low pressure drop and high efficiency
large effective interfacial area
high mechanical strength
low cost

Application:
Transfer towers both small and large diameter

Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays
Distillation, absorption etc
High pressure towers

Technical data

Name	Normal mm	DiameterHeight Thickness mm	Surface area m²/m³	Void space %	Bulk density kg/m³	No.elements per/m³	Packing factor m^-1
Intalox saddles	ø25	25200.6	185	96	409	101160	209
	ø38	38300.8	112	96	365	24680	137
	ø50	50401.0	75	96	291	10400	85
	ø76	76601.2	58	97	245	3320

The above data is reference to material stainless steel (AISI304) in the material thickness shown.

Material available:

carbon steel, stainless steel including 304, 304L, 410,316, 316L.

Package info

	package	bags	loaded volumn
20GP container	jumbo bag	20	20m3
40GP container	jumbo bag	44	44m3
40HQ container	jumbo bag	44	50m3

One jumbo bag can load 1-1.5m3 metal pall ring.

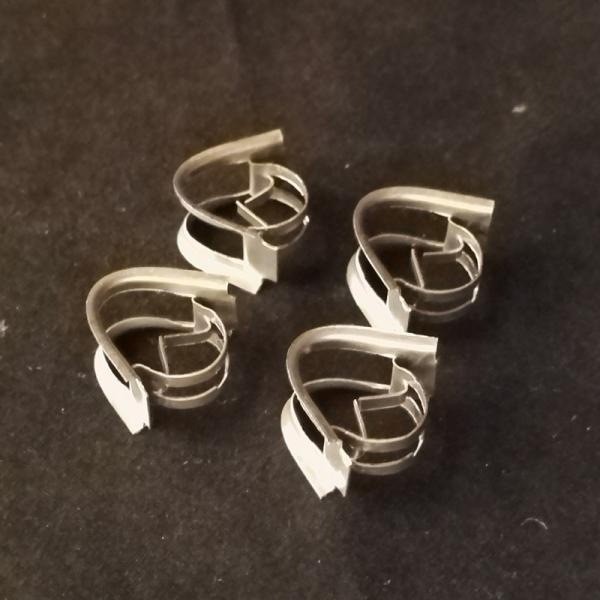

Product photo

Metal IMTP Tower Packing 25mm, 38mm, 50mm, 76mm

Production and shipment

Metal IMTP Tower Packing 25mm, 38mm, 50mm, 76mm

Other metal random packing products

Pall ring, Raschig ring, Super raschig ring, Cascade ring, Intalox saddle ring, IMTP packing, Conjugate ring, VSP ring, metal improved inner arc ring
