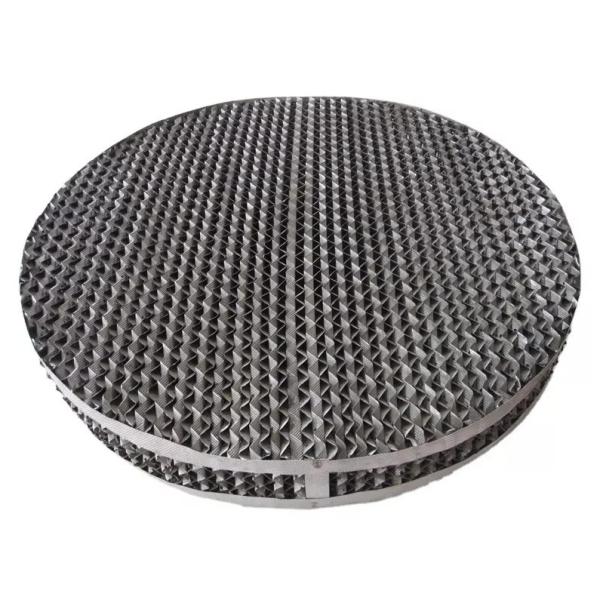

packing distillation columns: 500Y metal structured packing (packing distillation columns: 500Y metal structured packing ) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
packing distillation columns: 500Y metal structured packing detail:
packing distillation columns: 500Y metal structured packing (packing distillation columns: 500Y metal structured packing) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
Material
packing distillation columns: 500Y metal structured packing, packing distillation columns: 500Y metal structured packing is available in a wide range of materials, including stainless steels,
304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.
Application
packing distillation columns: 500Y metal structured packing, packing distillation columns: 500Y metal structured packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
The technical specification:
| Type | specific surface are m2/m3 | Void Volume % | Heaping Weight Kg/m3 | Wave Height mm | Theoretical plate
number
m-1 | Δ P
Pa/m
| Max F-factor m/s(kg/m3)0.5 |
| 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3.0 |
| 250Y | 250 | 97 | 170-200 | 12.5 | 2.0-3.0 | 200 | 2.6 |
| 350Y | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 |
