Metal Packing Metal Pall Ring For Chemical Packing

Name: Metal Packing Metal Pall Ring For Chemical Packing
Brand: NKCHEM
Price: 900.00 USD

China Metal Packing Metal Pall Ring For Chemical Packing wholesale

Brand Name : NKCHEM

Model Number : metal pall ring

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic meter

Price : $900.00 - $1,500.00/ cubic meter

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 15 days for one 20GP container

Packaging Details : Enhanced plastic super sacks on a wooden pallet or carton.Other packing is available upon your request .

Product name : Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring

Material : SS304, SS 304L, SS316, SS316, Carbon steel

Diameter : 38mm

Application : distillation column

Classfication : Tower packing, random packing, column packing

Size : 16,25,38,50,76,80,90mm

Advantage : suit for deeper beds

Contact Now

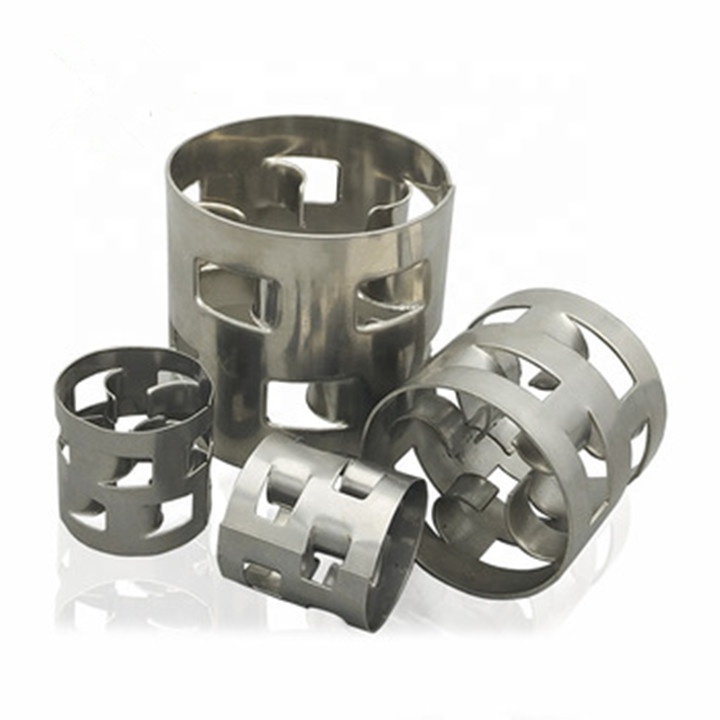

Metal Packing metal pall ring

Metal Packing Metal Pall Ring

37 years' experiences in manufacturing
Size: 16mm,25mm,38mm,50mm
Material:304,304L,410,316,316L,carbon steel

Metal Packing Metal Pall Ring is one of the most common and well known packing, NKCHEM Metal Packing Metal Pall Ring is an industry standard design media developed from Metal Raschig Ring and is used widely in varieties of applications.

Material: Metal Packing Metal Pall Ring are available in a wide range of materials such as stainless steel, carbon steel, aluminum, bronze, 304L, 316L, and other alloy etc.

Advantage:
Lower pressure drop
Good liquid / gas distribution and higher mass transfer efficiency
Versatility, easily wettable, high resistance to fouling, high temperature
High Mechanical Strength, suitable for deeper beds
High temperature resistance

Application: Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction etc.

Technical Parameter:

Name	Normal mm	DiameterHeight Thickness mm	Surface area m2/m3	Void space %	Bulk density kg/m3	No.elements per/m3	Packing factor m-1
Metal Packing Metal Pall Ring	ø16	16160.4	239	92.8	365	205000	299
	ø25	25250.6	219	93.4	427	55900	269
	ø38	38380.8	129	94.5	365	13000	153
	ø50	50501.0	112.3	94.9	395	6500	131

Note:The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L
