IMTP Intalox Metal Tower Packing 25, 38, 50, 76mm NKCHEM Ordinary Product

Name: IMTP Intalox Metal Tower Packing 25 38 50 76mm NKCHEM Ordinary Product
Brand: NKCHEM
Price: 655.00 USD

China IMTP Intalox Metal Tower Packing 25, 38, 50, 76mm NKCHEM Ordinary Product wholesale

Brand Name : NKCHEM

Model Number : NK-MCR

Place of Origin : CHINA JIANGXI

MOQ : 1 cubic meter

Price : $655.00 - $1,820.00/ cubic meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 3000 cubic meters per Month

Delivery Time : 5-8work days

Packaging Details : Conventional packing

Key Selling Points : IMTP packing

product name : intalox metal tower packing

other names : IMTP packing, intalox saddle, saddle ring, metal intalox saddle ring

classfication : tower packing, column packing, random packing, metal tower packing

size : 25,38, 50,76mm etc

material : stainless steel, copper, aluminum

advantages : high mechanical strength, low pressure drop

application : distillation, adsorption, deep vacuum tower

Contact Now

IMTP Intalox Metal Tower Packing 25, 38, 50, 76mm

Introduction:

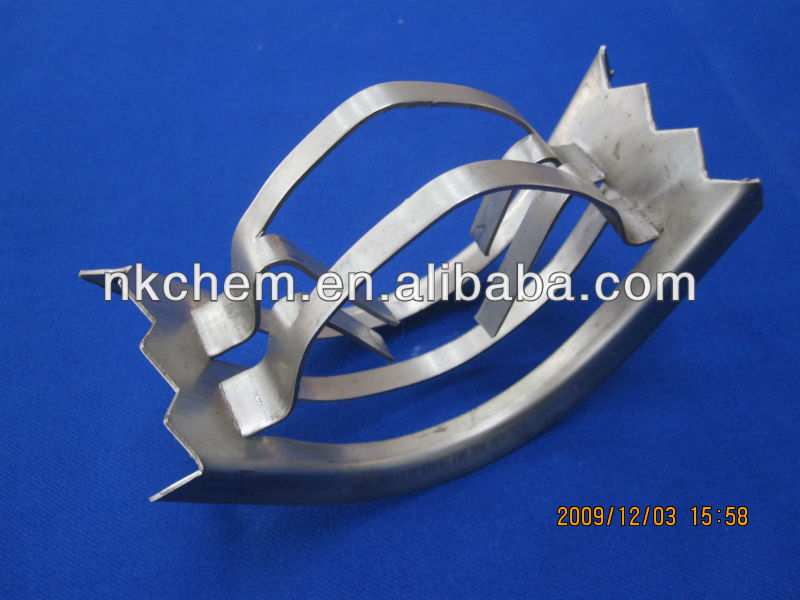

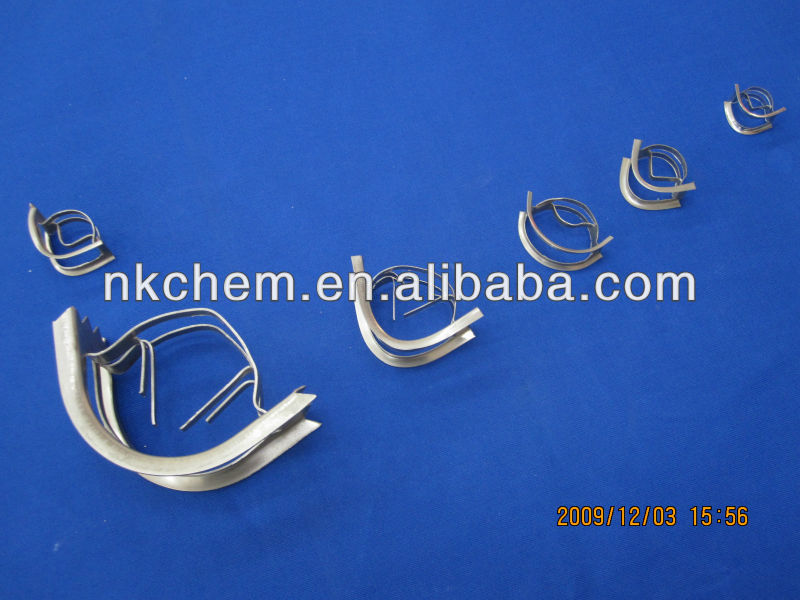

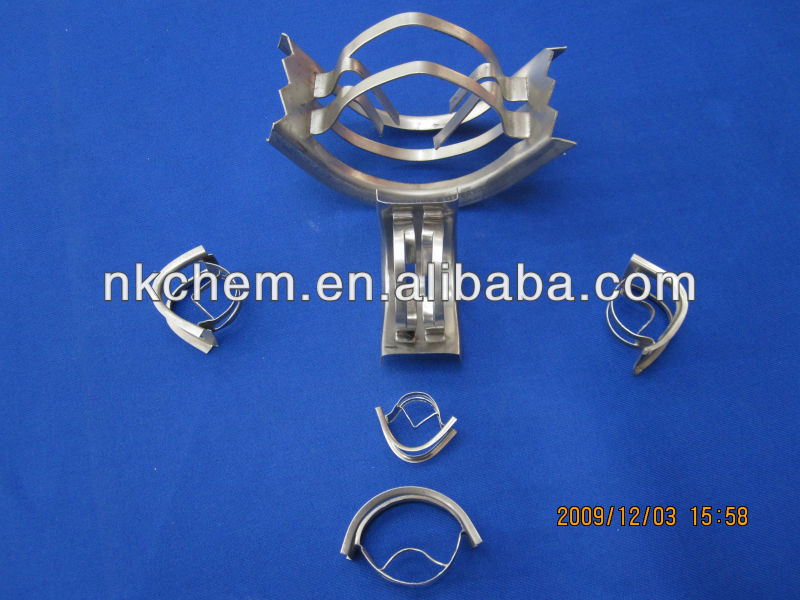

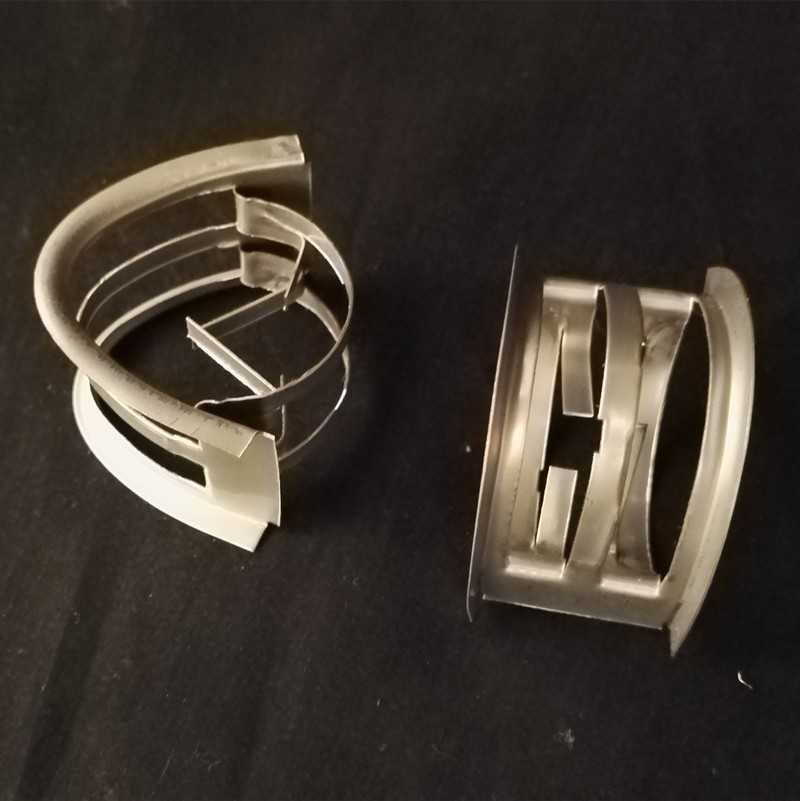

Metal Intalox Saddle Ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays. Metal Intalox Saddle Ring or metal saddle is available in various sizes, which give different combinations of efficiency and pressure drop.

Advantages:
low pressure drop and high efficiency
large effective interfacial area
high mechanical strength
low cost

Application:
Transfer towers both small and large diameter

Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays
Distillation, absorption etc
High pressure towers

Technical Parameter:

Name	Normal mm	DiameterHeight Thickness mm	Surface area m2/m3	Void space %	Bulk density kg/m3	No.elements per/m3	Packing factor m-1
Intalox saddles	ø25	25200.6	185	96	409	101160	209
	ø38	38300.8	112	96	365	24680	137
	ø50	50401.0	75	96	291	10400	85
	ø76	76601.2	58	97	245	3320

Our objective is to help you find the most desirable goods at the lowest cost!

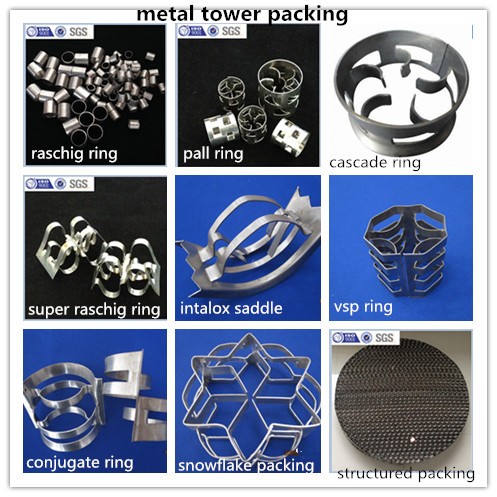

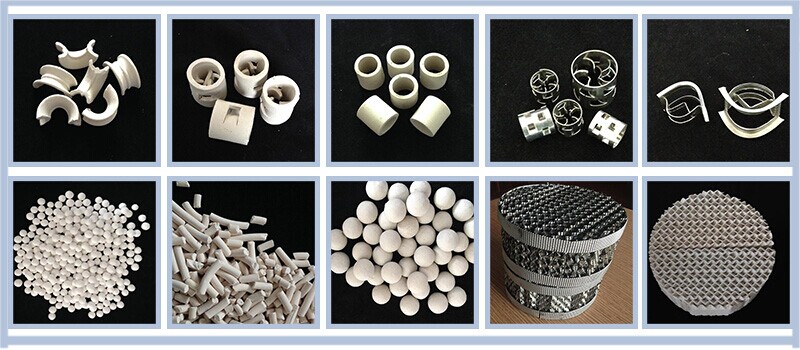

Our other tower packing products

Packaging & Shipping

Company Information

Our Services

1. We promise to reply your inquiry within 24 hours.

2. OEM & ODM service for your unique idea with absolute convenience.

3. Experienced salesmen with professional industry knowledge.

4. We value our business credit, promise to keep your company information confidential

5. Please add my Trade Manager: cn220021241 for prompt service.

FAQ

1.Can I negotiate the price?
Yes, we may consider the discounts for mixed goods or bulk orders of individual products

2.How long for the lead time?
In generally, it only need 7-15 workdays.

3.Can I get the sample for free?
Yes,500g sample is free and buyer should pay for the freight.

4.Can I visit your factory before make the order ?
Yes, warmly welcome. Our factory is located in No.91 Anyuan West street, Pingxiang City, Jiangxi Province. Before you come, please let us know your schedule, your arriving time, we can come to pick you up.

5. What information should I offer to you if I want to know the price?
- Application/Usage
- Size
- Material
- Quantities you need;
- Package term
- Delivery time
- Payment term:FOB or CIF
- Destination.
