Plastic Random Packing PP Polyhedral Hollow Ball 25mm 38mm 50mm

Model Number : NK-PPB

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic metre

Price : depends on quantity

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 10 days for one 20GP container

Packaging Details : woven bag

Product name : Tri pack

Material : PP

Diameter : 25mm, 38mm, 50mm

Application : water treatment

Classfication : Tower packing, random packing, column packing

Contact Now

Plastic Random Packing PP Polyhedral Hollow Ball 25mm, 38mm, 50mm

Product description

Polyhedral Hollow Ball packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Physical & chemical properties of plastic random packing

Performance / Material	PE	PP	RPP	PVC	CPVC	PVDF
Density (g/cm3)	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Operation Temp.	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	Good	Good	Good	Good	Good	Good
Compression Strength(Mpa)	>6.0	>6.5	>7.0	>6.0	>8.0	>10.0

Main technical index:

Name	Normal mm	DiameterHeight Thickness mm	Surface area m²/m³	Void space %	Bulk density kg/m³	No.elements per/m³	Packing factor m^-1
Polyhedral ball	ø25	25*1.0	460	90	96	65100	631
	ø38	38*1.2	325	91	83	28500	355
	ø50	50*1.5	236	91	76	11500	313

Note: The above data are reference to material PP.

Package info

	package	volume	volume/bag
20GP container	woven bag	25-28m3	0.1-0.3m3
40GP container	woven bag	52-55m3	0.1-0.3m3
40HQ container	woven bag	60-65m3	0.1-0.3m3

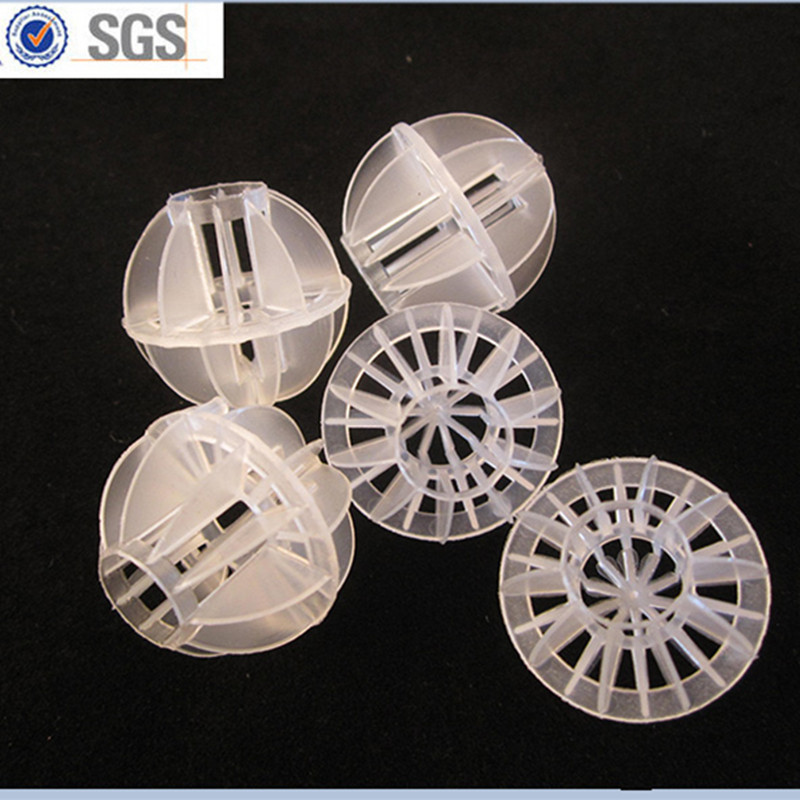

Product photo

Plastic Random Packing PP Polyhedral Hollow Ball 25mm 38mm 50mm

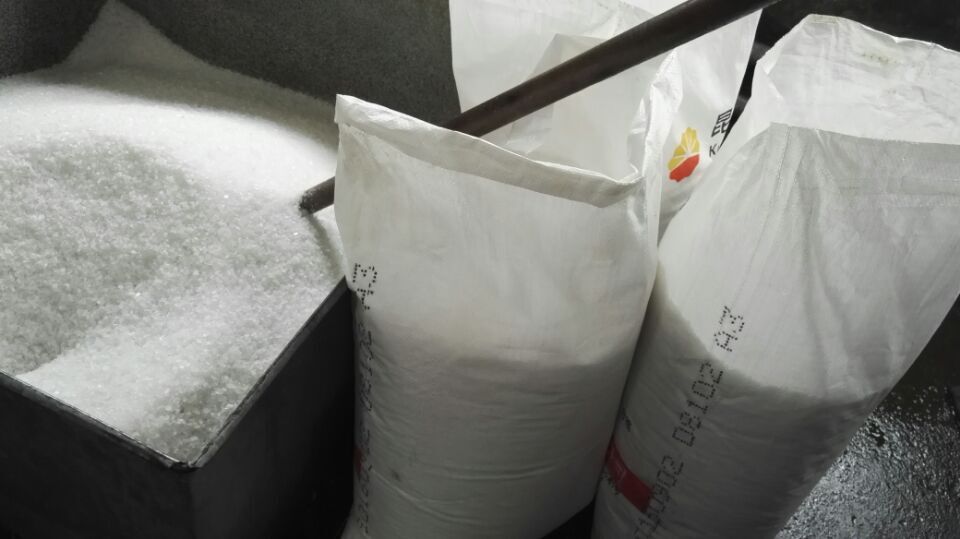

Plastic Material: 100% virgin PP granules

Plastic Random Packing PP Polyhedral Hollow Ball 25mm 38mm 50mm

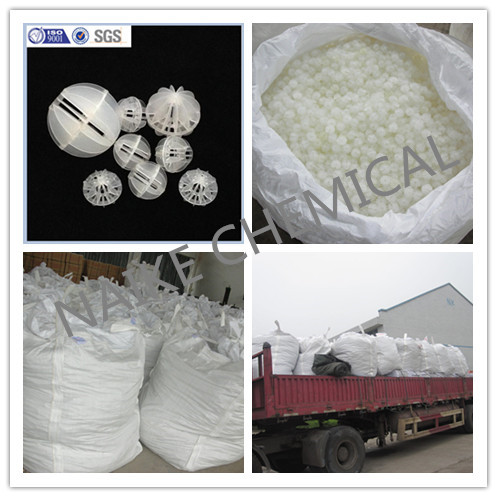

Production and shipment

Plastic Random Packing PP Polyhedral Hollow Ball 25mm 38mm 50mm

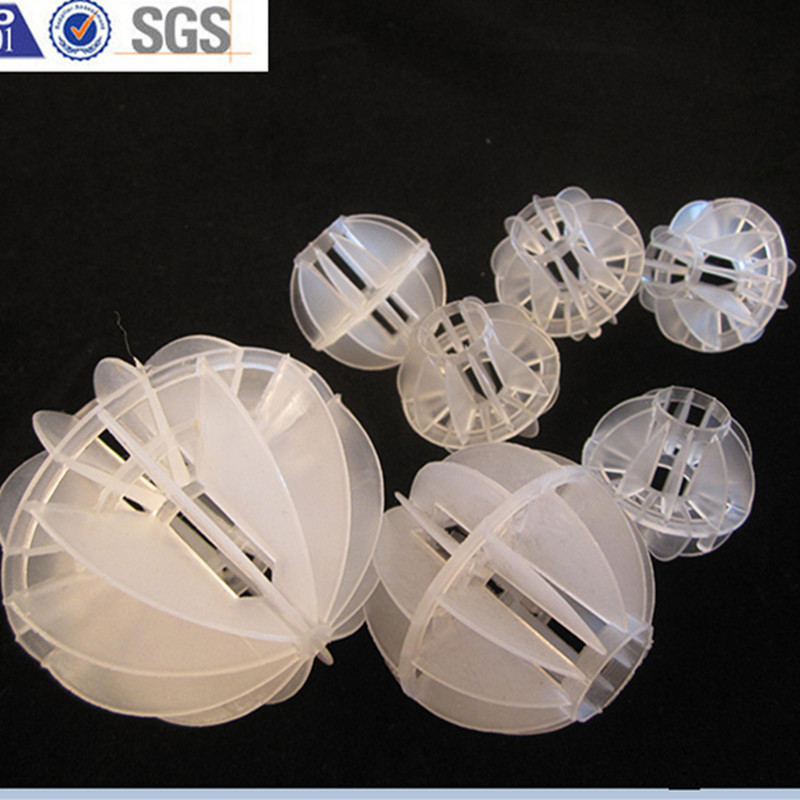

Other plastic random packing products

Plastic Random Packing PP Polyhedral Hollow Ball 25mm 38mm 50mm
