Product Description

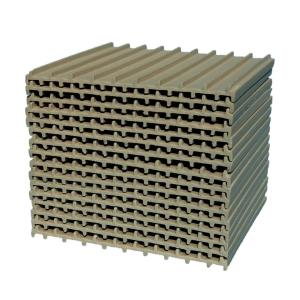

Multi-layer ceramic media(MLM) is a type of structured packing which designed for VOC emission reduction equipment——Regenerative Thermal Oxidation (RTO). MLM is made of ceramic plate with prong. MLM obtained US patent for invention and Chinese patent for utility models because of its special structure design.
The product has been exported to Europe, the United States, Southeast Asia,more than 30 countries and is the first choice of heat exchange media for RTO system which used for the VOCs emission of chemical, metallurgy, painting and so on.
| Item | Unit | MLM-125 | MLM-160 | MLM-180 | MLM-200 | MLM-S Type |
| Dimension | mm | 305x305x101 | 305x305x101 | 305x305x101 | 305x305x101 | 305x305x101 |
| Surface area | m2/m3-ft2/ft3 | 410/125 | 525/160 | 590/180 | 655/200 | 722/220 |
| Density | g/cm3 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 |
| Weight | Kg/m3 | 703 | 873 | 981 | 1096 | 1052 |
| Acid Resistance | % | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| Water Absorption | % | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 |
| Free Space | % | 69 | 61 | 56 | 51 | 54 |
| Max Working Temperature | ℃ | 1180 | 1180 | 1180 | 1180 | 1180 |
| Heat Capacity | (kJ/m2-°C) | 670 | 810 | 940 | 1070 | 1070 |
| Crushing Strength | lb/ft2 | 4210 | 5380 | 6120 | 7340 | 7340 |
| Feature | High heat storage performance |
| High heat transfer efficiency |
| Higher specific surface area |
| Low pressure drop |
| Very low operating costs |
Advantage:
1.High specific surface area
2.High specific heat capacity
3.Excellent heat conductivity
4.Low pressure drop
5.Plugging resistent
6.Low price with high performance
Application:
Regular honeycomb ceramic fillers designed for regenerative heat oxidizer and regenerative heat exchanger for organic waste gas treatment equipment.
