Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment

Product Categories

Naike Chemical (Shenzhen) Co., Ltd

Contact Now

Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment

Model Number : NK-PCB

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic metre

Price : depends on quantity

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 10 days for one 20GP container

Packaging Details : woven bag

Product name : Cage ball

Material : PP

Diameter : 50mm

Application : water treatment

Classfication : Tower packing, random packing, column packing

Contact Now

Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment

Product description

Plastic cage ball has these characteristics,large voidage,heat resistance,chemical corrosion resistance,low pressure drop and mass transfer unit height,high pan-point,vapor and liquid contacted fully,small proportion,high mass transfer efficiency,etc...

In a variety of media,the operation temperature is 60-150°c,it is widely usded in the packing tower in pertroleum,chemicals,chlor-alkaki,gas and environmental industries.

Besides,it can be usded in a variety of horizontal acid tanks and condensate and desalting water tanks in water treatment.This packing reduces the heat loss in large extent and the pullution of dioxide carbon and oxygen o water in acid mist and air,and protects operator's health,so as to maintain the water quality,save energy and clean up the environment.

This packing can be usded in a variety of horizontal acid tanks and condensae and desalting water tanks in water treatment. It reduces the heat loss in large extent and the pollution of dioxide carbon and oxygen to water in acid mist and aire.

Physical & chemical properties of plastic random packing

Performance / Material	PE	PP	RPP	PVC	CPVC	PVDF
Density (g/cm3)	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Operation Temp.	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	Good	Good	Good	Good	Good	Good
Compression Strength(Mpa)	>6.0	>6.5	>7.0	>6.0	>8.0	>10.0

Main technical index:

Type

specifific surface are m2/m3

Void Volume

Heaping Weight

Kg/m3

No.of elements

n/m3

Packing

factor

m-1

Φ38

110

22000

141

Φ50

10480

112

Note: The above data are reference to material PP.

Package info

	package	volume	volume/bag
20GP container	woven bag	25-28m3	0.1-0.3m3
40GP container	woven bag	52-55m3	0.1-0.3m3
40HQ container	woven bag	60-65m3	0.1-0.3m3

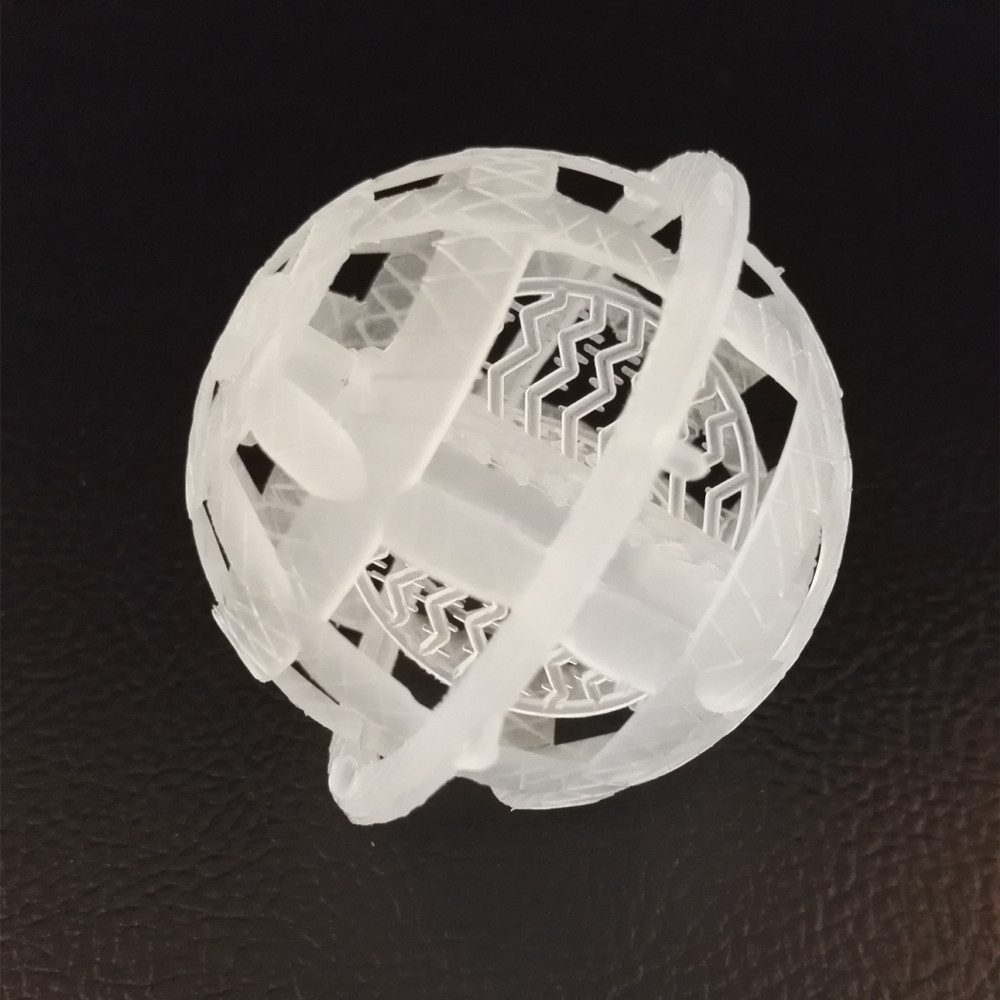

Product photo

Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment

Plastic Material: 100% virgin PP granules

Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment

Production and shipment

Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment

Other plastic random packing products

Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,

hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing

Openable Plastic Cage Ball Tower Packing 50mm For Water Treatment
