PP PE PVC Plastic Cascade Mini Ring For Chemical Tower Packing
37 years professional production experience in tower packing and Molecular Sieves ..
Intoduction:
Cascade Ring has been used successfully as an inexpensive and efficient product to increase tower capacity and efficiency. There are numerous process advantages that can be realized by using plastic random column packing in many applications. It is made of anti-chemical corrosion materials,such as PE,PP,RPP,PVC,CPVC and PVDF The feature is that high void ratio,low pressure drop, sufficient gas liquid contact,small specific weight,and high mass transferring efficiency and so on. The working temperature is within 60-150, and widely used in refinery,chemical alkali-chloride,coal gas and environmental protection etc.
Advantage:
• Low aspect ratio increases capacity and reduces pressure drop. The preferred vertical orientation of the packing axes allows free gas flow through the packed bed.
• Low pressure drop and high capacity allows smaller column diameter and blower sizes in new installations.
• Open structure and preferred vertical axis orientation inhibits fouling by allowing solids to be more easily flushed through the bed by the liquid.
• Ring and spoke construction and preferred vertical orientation provide high mechanical strength, which allows use in deep beds.
Application: Absorption and stripping services, many environmental applications.
A variety of different sizes of products provide the ability to optimize capacity and efficiency based on different application requirements.
Technical Parameter:
| Name | Normal
mm | Diameter*Height*
Thickness mm | Surface area
m2/m3 | Void space
% | Bulk density
kg/m3 | No.elements
per/m3 | Packing factor
m-1 |
Cascade ring | ø25 | 25*13*1.2 | 228 | 90 | 98 | 81500 | 313 |
| ø38 | 38*19*1.4 | 133 | 93 | 58 | 27200 | 176 |
| ø50 | 50*25*1.5 | 114 | 94 | 55 | 10740 | 143 |
| ø76 | 76*37*3.0 | 90 | 93 | 68 | 3420 | 112 |
The bulk density given here is based on PP material.
Main Products:

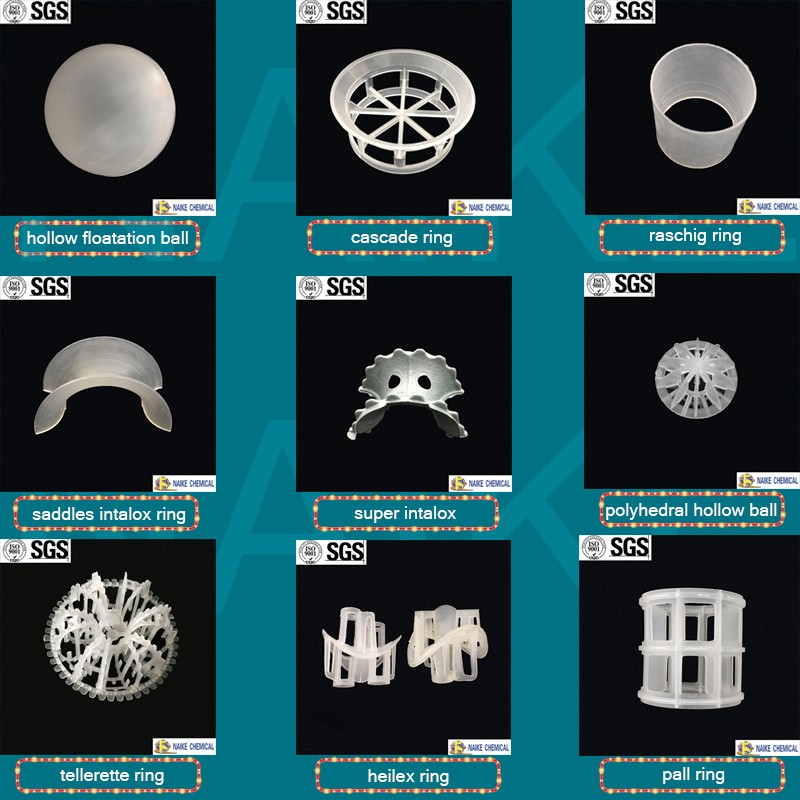

Plastic Structured Packing, Plastic Cage Ball, Plastic Pall Ring, Plastic Cascade Ring, Plastic Super Intalox, Plastic Tellerette Ring, Plastic Heilex Ring, Polyhedral Hollow Ball, Plastic Hollow Floatation Ball, Plastic Conjugate Ring, Plastic Intalox Saddles, etc...The material of products also can be made of ceramic or metal.
