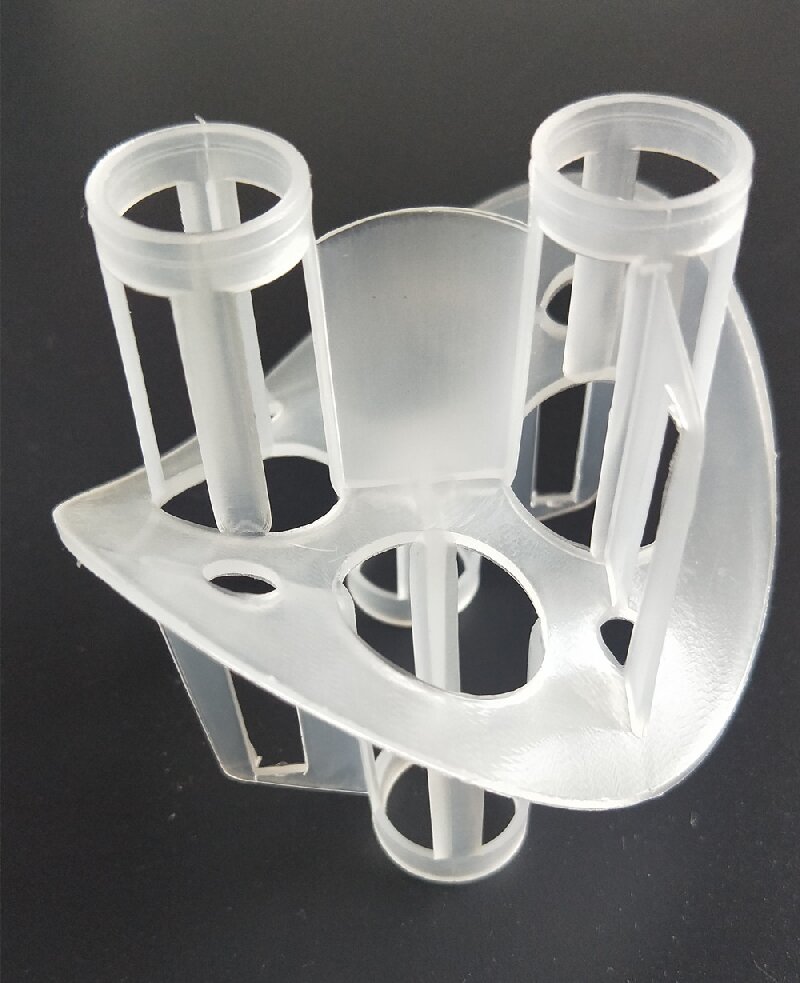

Scrubber Packing Plastic Random Packing Heilex Ring 25mm, 38mm, 50mm, 76mm, 100mm

Name: Scrubber Packing Plastic Random Packing Heilex Ring 25mm 38mm 50mm 76mm 100mm
Brand: NAIKE CHEMICAL
Price: 100 USD

China Scrubber Packing Plastic Random Packing Heilex Ring 25mm, 38mm, 50mm, 76mm, 100mm wholesale

Brand Name : NAIKE CHEMICAL

Model Number : HR002

Certification : ISO9001:2015

Place of Origin : CO

MOQ : 1m3

Price : usd100-usd400

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card

Supply Ability : 1500m3 per month

Delivery Time : 5-8 working days, depends on quantity

Packaging Details : woven bag, jumbo bag

Name : Heilex ring

Material : PP, PVC, CPVC, PE, PVDF, RPP, PTFE

Size : 25mm, 38mm, 50mm, 76mm, 100mm

Classification : tower packing, random packing, column packing, air scrubber packing

Application : scrubber

Package : woven bag, jumbo bag

Contact Now

Scrubber Packing Plastic Random Packing Heilex Ring 25mm, 38mm, 50mm, 76mm, 100mm

Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..

Physical & chemical properties of plastic random packing

Performance / Material	PE	PP	RPP	PVC	CPVC	PVDF
Density (g/cm3)	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Operation Temp. (Degree C)	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	Good	Good	Good	Good	Good	Good
Compression Strength(Mpa)	>6.0	>6.5	>7.0	>6.0	>8.0	>10.0

25mm 50mm 95mm Plastic Random Packing Plastic Heilex Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).

The feature:
25mm, 38mm, 50mm, 76mm, 100mm Plastic Random Packing Plastic Heilex Ring has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on.

The application:
The application temperature in media ranges from 60ºCto 150ºC. For these reasons 25mm 50mm 95mm Plastic Random Packing Plastic Heilex Ring is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Technical data
Name	Type	Size	Surface Area	Void Rate	No.element	Bulk Density	Dry packing factor
	Φ	D×H×δ	α	ε%	n	γp	α/ε3
	mm	mm	m2/m3	m3/m3	N/ m3	kg/m3	m-1
heilex ring	Φ50	50×50×1.5	107	94	50	8200	128
	Φ76	76×76×1.8	75	95	45	3420	87
	Φ100	100×100×2.0	55	96	48	1850	62

Scrubber Packing Plastic Random Packing Heilex Ring 25mm, 38mm, 50mm, 76mm, 100mm

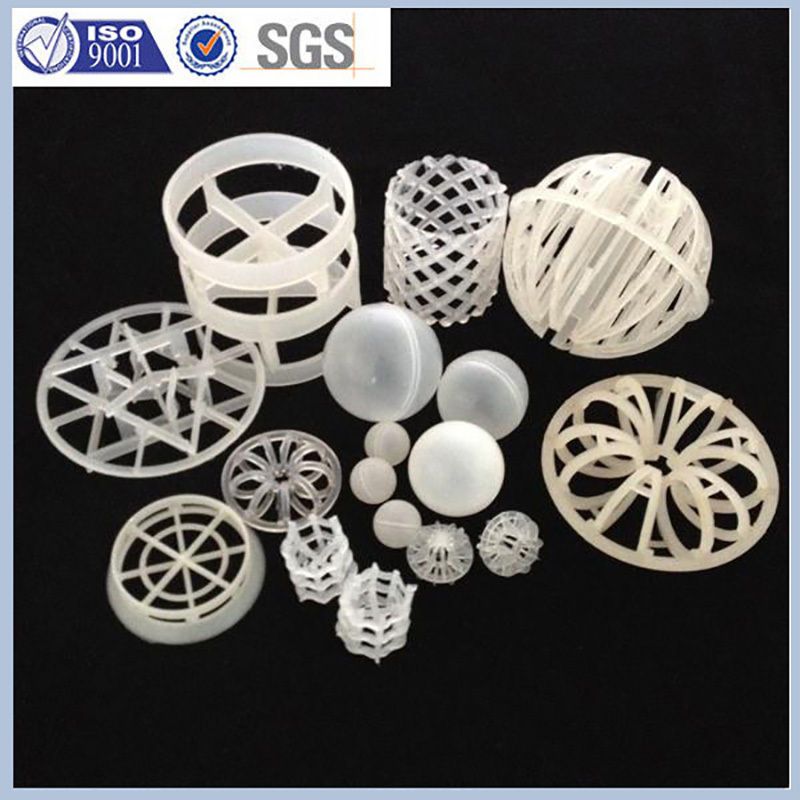

Other plastic packing
